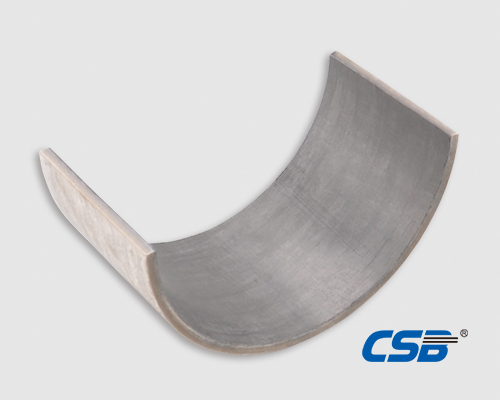

Concentrator support bracket bearings - CSB® Plastic Bearing Technology

Product properties

●Made of long fiber and high-strength resin
●Max. dynamic load 140MPa
●Self-lubricating，maintenance-free
●Low friction, wear resistance
●Suitable for consecration mirror tracking bracket

General properties	Standard	Unit	CRB
Density	ISO1183	g/cm³	1.95
Max. water absorption	ISO62	%	0.1
Max. PV value	ITS026	N/mm²×m/s	1.8
Coefficient of friction	ITS025	µ	0.03-0.12
Long-term application temperature	ITS029	℃	+160
Short-term application temperature	ITS029	℃	+180
Lowest application temperature	ITS029	℃	-100
Max. Speed	ITS032	m/s	0.20
Compressive strength	ITS033	MPa	420
Max. static load	ITS027	MPa	240
Max. dynamic load	ITS028	MPa	140
Shore hardness	ISO868	D	95
Coefficient of thermal expansion	ISO11359	10^-6×K^-1	13

Standard products

Concentrator support bracket bearings

Part no.:

d1 [mm]：

d2 [mm]：

W1 [mm]：

W2 [mm]：

L [mm]：

*Lead time [wks]：

Shop now

Dimensions

Product info.
Downloads

▊Material structure

Sliding layer: Continuous wound PTFE and high-strength fibers encapsulated in an internally lubricated, high temperature filled epoxy resin.

Backing: Continuous wound glass fiber encapsulated in a high temperature epoxy resin.

▊Typical features

High load capacity

Excellent wear resistance

Very good chemical resistance

Lower friction coefficient

Oil forbidden

CSB® Concentrator support bracket bearings

Type PDF

Size 177KB

Time 03-2024

No. CSB/CAT.067E

download
