FME611 Measuring system cables - CSB® Plastic Bearing Technology

Product properties

● PVC outer jacket
● Shielded
● Oil-resistant
● Flame retardant
● Temperature： -15/+70℃

Code
Core wire
Outer diameter		mm

Technical data.

General properties

	Bus type	-
	Number of cores and conductor nominal cross-section [mm]	(3×(2×0.14)C+(4×0.14)+(2×0.5))C
	Colour code	3×(2×0.14)C：green/yellow，black/brown，red/orange (4×0.14)：grey，blue，white-yellow，white-black (2×0.5)：brown-red，brown-blue
	Grounding wire	-
	Outer diameter [mm]	9
	Copper index [kg/km]	71
	Weight [kg/km]	137
	Drive technology system	Control Techniques、NUM、Siemens

Dynamic properties

	Min. bending radius[mm], Moving in cable carriers(factor)	10×d
	Min. bending radius[mm], Moving in cable carriers	90
	Min. bending radius[mm], Fexible moving(factor)	8×d
	Min. bending radius[mm], Fexible moving	72
	Min. bending radius[mm], Fixed installation(factor)	5×d
	Min. bending radius[mm], Fixed installation	45
	Temperature[℃]， Moving in cable carriers	+5 up to +70
	Temperature[℃]， Fexible moving	-5 up to +70
	Temperature[℃]， Fixed installation	-15 up to +70
	v max.[m/s]， unsupported	5
	v max.[m/s]， gliding	3
	a max.[m/s²]	30
	Travel distance[m]	Unsupported travels and up to 10 m for gliding applications
	Torsion[°]	-

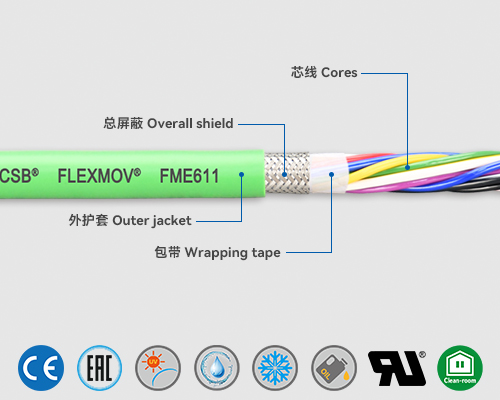

Cable structure

	Conductor	Conductor consisting of bare copper wires (according to DIN EN 60228).
	Conductor insulation	Mechanically high-quality TPE mixture.
	Conductor construction	According to measuring system specification.
	Color code	According to measuring system specification.
	Element shield foil	-
	Element shield	Extremely bending-resistant braiding made of tinned copper wires. approx. 90 % optical
	Element jacket	TPE mixture on pair shielding adapted to suit the requirements in cable carriers
	Intermediate layer	Foil taping over the outer layer.
	Inner jacket	-
	Overall shield foil	-
	Overall shield	Extremely bending-resistant braiding made of tinned copper wires. Coverage linear approx. 55 %, optical approx. 80 %
	Outer jacket	Low-adhesion mixture on the basis of PVC, adapted to suit the requirements in cable carriers (following DIN EN 50363-10-2).
	Jacket color	Yellow-green RAL6018

Electricity attributes

	Characteristic wave impedance approx. [Ω]	-
	Nominal voltage [V]	50
	Test voltage [V]	500

Properties and approvals

	UV-resistance	-
	Hydrolysis-resistance	-
	Cold-resistant [℃]	-
	Oil resistance	Oil-resistant (following IEC60811-404, tested by SGS), bio-oil-resistant (following VDMA24568, tested by SGS)
	Halogen-free	-
	Flame resistance	According to IEC 60332-1-2、VW-1、FT1
	Silicone-free	Free from silicone which can affect paint adhesion
	REACH	Accordding to the regulation (EC) No. 1907/2006 (REACH)
	Lead-free	Following 2015/863/EU (RoHS-II Tested by SGS)
	EAC	Certificate No.KG 417/043.CN.02.00249
	Cleanroom	Following ISO 14644-1
	CE	Following 2014/35/EU
	UL	Following UL2464, 80℃, 300V

▊FLEXMOV^® FME611 Flexible measuring system cable service life

Double strokes	5 million times	7.5 million times	10 million times
Temperature,from/to [℃]	R min. [factor x d]	R min. [factor x d]	R min. [factor x d]
+5 / +15	12.5	13.5	14.5
+15 / +60	10	11	12
+60 / +70	12.5	13.5	14.5

***According to the FLEXMOV® guarantee.
