C01 Micro cable carriers

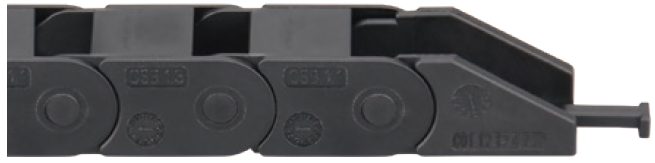

Product properties

C01 micro cable carriers are very small, one piece chains with low weight, making them ideal for highly dynamic applications. C01 micro cable carriers are optimal for the smallest installation spaces, and are available in many versions.

● Small pitch for low-noise, smooth running

● One-piece design, non-openable

● Very lightweight, low price smallest inner heights and bend radius

ESD CABLE CHAINSElectrically conductive ESD/ATEX version C01E upon request

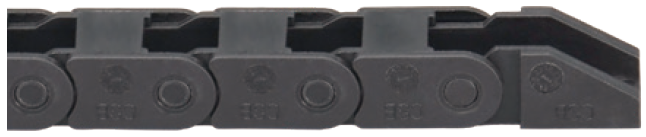

C01.07 Micro cable carriers
C01.07 Micro cable carriers

● Inner height:7 mm
● Inner width:7-30 mm
● Bend radius:15-48 mm
● Link pitch:16.7 mm

more

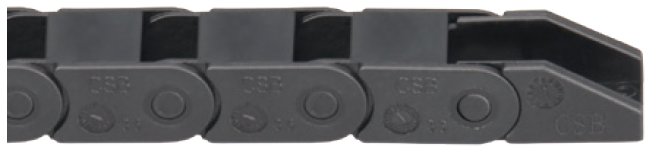

C01.10 Micro cable carriers
C01.10 Micro cable carriers

● Inner height :10 mm
● Inner width:10-30 mm
● Bend radius:18-38 mm
● Link pitch:20 mm

more

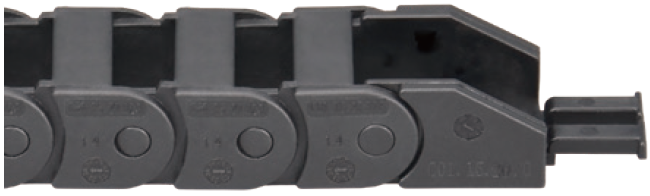

C01.15 Micro cable carriers
C01.15 Micro cable carriers

● Inner height:15 mm

● Inner width:16-50 mm
● Bend radius:25-48 mm
● Link pitch:20 mm

more

▊ Product introduction

C01 micro cable carriers are very small, one piece chainsC01 Micro cable chains

with low weight, making them ideal for highly dynamic

applications. C01 micro cable carriers are optimal for the

smallest installation spaces, and are available in many

versions.



Micro cable chains One-piece design,non-openable  One-piece design,non-openable





Micro cable chains flammability Class  Flammability Class UL94 HB

Micro cable chains CE certification   CE certification

Micro cable chains RoHS certification    RoHS certification

Micro cable chains low-noise    Low-noise

Electrically conductive ESD/ATEX version micro cable chains     Electrically conductive ESD/ATEX version C01E upon request


▊ Standard dimensions

Micro cable carriersPart No.

Inner width

Bi

[mm]

Outer width

Ba

[mm]

Inner height

Hi

[mm]

Outer height

Ha

[mm]

Bend radius

R

[mm]

Unsupported

length

[m]

Micro cable chains C01.07C01.077-3012-35710
15-48≤0.5
Micro cable chains C01.10C01.1010-3014-34101218-38≤0.5
Micro cable chains C01.15C01.1516-5024.2-58.21519.3
25-48≤0.7


▊ Installation

CSB Micro cable chains installation

  Twist and click                                                                                     Twist and divide

Distribution rules | Cables and hoses

In order to ensure that the chain is functioning properly and to avoid damage to the cables or hoses, the following principles must be observed when laying cables or hoses:

电缆或者软管在拖链中的布置This minimum clearance would be 10% for electrical round cables, 20% for hydraulic hoses.
电缆或者软管在拖链中的布置In order to reduce the possible friction, avoid pipes with different skin materials such as cables or hoses.(eg: cable and hydraulic hoses)
电缆或者软管在拖链中的布置In applications where multiple cables and hoses are used, in order to avoid mutual friction between them, it is preferable to place them in a suitable separate space and separate them from each other with a spacer. If there are no conditions to achieve, make sure there is enough space between them to avoid mutual friction (H<D).
电缆或者软管在拖链中的布置The cables or hoses are laid in a symmetrical manner according to their diameter and weight. The largest and heaviest cables are placed on the outside of the section and the small and light cables are placed on the inside.

C01 Micro cable chains

Type PDF
Size 496KB
Time 10-2023
No. CSB/CAT.064
download

795

▊ Typical Applicable Industries and Applications

● Vehicle construction

● Automatic doors

● Measuring machines

● Electric equipment

● Pick & place robots

● Medical industries

● Printer and plotter

● Semi-conductor machines


DURAMOV® Cable Chain Test Video

CSB conducts approximately 10 million DURAMOV® cable chain endurance tests at 68 laboratory stations and more than 30 application stations every year. The cable chain test laboratory includes different installation and application tests: short-stroke unsupported installation, vertical hanging, vertical standing, side-mounted and long-stroke sliding tests in outdoor natural climates; The cable chain application station tests include: Application tests of C02 cable chains on machining centers, Application tests of C02 and C06 cable chains on grabbing manipulators or robots, Application tests of C03 cable chains on long-stroke manipulators,  Application tests of micro cable chains such as C01 and C31 on high-frequency motion devices...

DURAMOV® Cable Chain Finder[V1.1] is based on the analysis and calculation of a large number of test data in CSB® laboratory. You can calculations filler and installation data by entering parameters such as cables, gas tubes, oil tubes and installation data, The system will analyze your design data and finally output the adaptation cable chains.
Because the system calculate and analyze based on lab data, it can't exactly meet the ractual use requirements absolutly. The system data verification has certain limitations; CSB® recommends that the cable chains must be tested again to verify whether it meets the actual use requirements.
DURAMOV® Cable Chain Finder output data information is only for design reference, and can not be used as the final standard for determining the cable chains conformity, If you have any questions, please contact CSB® sales engineers.

FLEXMOV® High-flexible Cable Finder V1.0 is based on a large amount of test data from CSB® laboratories and combined analysis and calculation of cable materials and structural characteristics. You can find suitable cables by selecting sheath materials, cable application parameters and application environment options, and combined with the cable core wire and shielding requirements, the system will output an adapted flexible cable.

Since the system's simulation calculation analysis based on theoretical data may not fully meet the input parameters, data verification has certain limitations; CSB® recommends that flexible cables need to be tested and verified again on the equipment to fully meet the actual use requirements.

The output data information of the FLEXMOV® high-flexible cable finder is only for reference in design selection and cannot be used as the basis for final cable compliance determination; if you have any questions, please contact CSB® sales engineers.
