DURARUB®21 Sliding plates

Product properties

● For dry applications
● Available hardened surface aluminum shafts
● Low starting friction force
● Good chemical resistance
● Continuous working temperature: -60/+120℃


Material properties
Standard
Unit
DURARUB®21
Density
ISO1183
g/cm3
2.10
Max. PV (dry)ITS026N/mm2×m/s0.7
Coefficient of friction
ITS025µ
0.10-0.25
Application temperature
ITS029
-60/+120
Max. Speed
ITS032
m/s
0.20
Max. static load
ITS027
MPa
150
Max. dynamic load
ITS028
MPa
10
Coefficient of thermal expansion
ISO11359
10-6×K-1
13
Shore hardness
ISO868
D
80
Shaft hardness
-
HB
≥180
Shaft surface finish
-Ra
0.2-0.6


DURARUB®21 Sliding plates

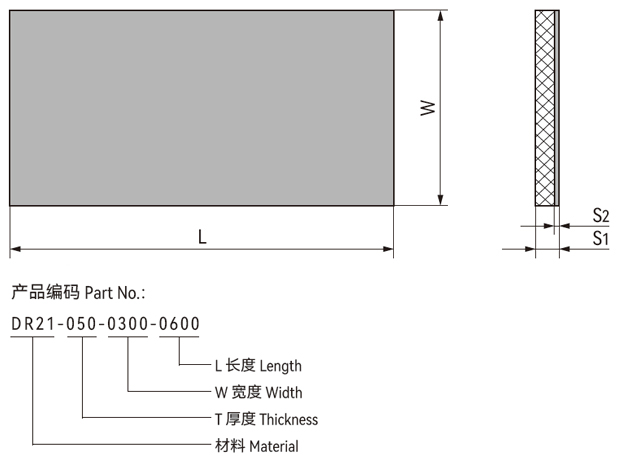

Dimensions

Material structure

DR21 sliding plates consist of two layers combining the excellent bearing properties of low-friction sliding layer with the high strength of a load carrying glass-fibre filled backing.

silding layer consists of an fluoroplastic filled with solid lubricants, designed to ensure good tribological properties and lower starting friction force.


Installation with M8 countersunk screws


DURARUB® Composite anti-wear pads

Type PDF
Size 277KB
Time 04-2024
No. CSB/CAT.064
download
