DURARUB®33 Sliding plates - CSB® Plastic Bearing Technology

Product properties

● For dry, oil, grease or underwater applications
● Fluorine and silicon free
● Excellent dimensional stability
● High load capability
● Low friction coefficient
● Good chemical resistance
● Sliding layer machined available
● Continuous working temperature: -60/+120℃

Material properties	Standard	Unit	DR33
Density	ISO1183	g/cm³	1.90
Max. water absorption	ISO62	%	0.1
Max. PV value	ITS026	N/mm²×m/s	1.2
Coefficient of friction	ITS025	µ	0.05-0.20
Long-term application temperature	ITS029	℃	+120
Short-term application temperature	ITS029	℃	+160
Lowest application temperature	ITS029	℃	-60
Max. Speed	ITS032	m/s	0.15
Compressive strength	ITS033	MPa	200
Max. static load	ITS027	MPa	150
Max. dynamic load	ITS028	MPa	100
Coefficient of thermal expansion	ISO11359	10^-6×K^-1	13
Mating part hardness	-	HB	≥180
Mating part surface finish	-	Ra	0.2-0.8

Standard products

DURARUB®33 Sliding plates

Part no.:

S1 ±0.15 [mm]：

S2 [mm]：

L Max. length [mm]：

*Lead time [wks]：

W Max. width [mm]：

Shop now

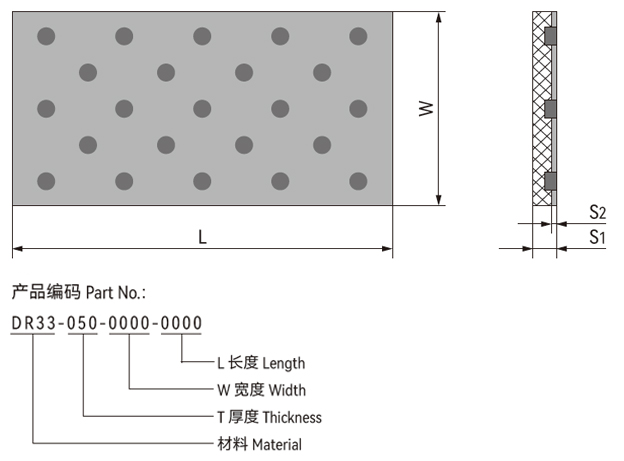

Dimensions

▊Material structure

DR33 sliding plates consist of two layers combining the excellent bearing properties of low-friction sliding layer with the high strength of a load carrying glass-fibre filled backing.

The silding layer consists of an epoxy resin filled with high strength solid lubricant columns and high performance weaves, designed to ensure high load and good tribological properties.

▊Installation with M8 countersunk screws
