LIN-11RS Plastic linear bearings

Product properties

● Closed and self-aligning design
● Assembled liner LIN-11
● Anodized aluminum adapter
● Axial secured by circlip
● Maintenance-free and low noise
● Resistant to dirt and dust
● Operation temperature -50℃/+90℃


LIN-11RS Plastic linear bearings

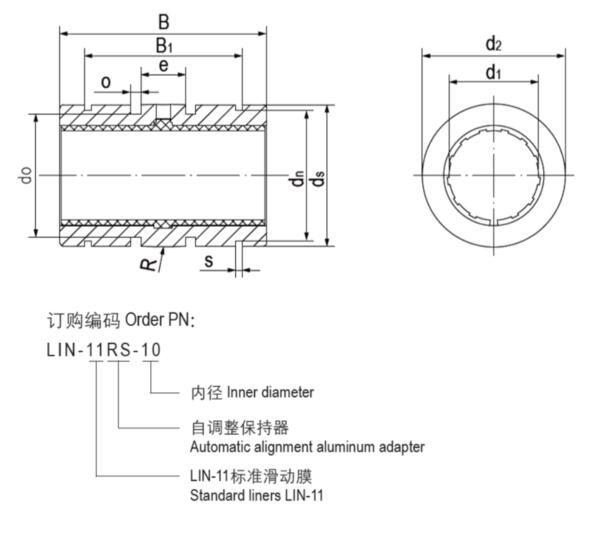

Dimensions

LIN-11RS Plastic linear bearings load capacity

Part No.

Dynamic Load P=5MPa
Static Load P=35MPa
Weight
F max. [N]
F max. [N]
[g]
LIN-11RS-10
725507512
LIN-11RS-12
960672018
LIN-11RS-16
14401008023
LIN-11RS-20
22501575043
LIN-11RS-25
36252537595
LIN-11RS-30
510035700145
LIN-11RS-40800056000316
LIN-11RS-50900087500550

CSB-LIN® Linear bearing eccentric forces

●Maximum 2:1 ratio
●1x =bearing separation on same shaft
●2x =distance from shaft to load or force

CSB-LIN® Precision linear bearings

 ●CAUTION: uneven motion or even system blockage will occur if the 2:1 ratio is exceeded !
This principle is NOT load dependent! It is NOT due to edge loading. It is also NOT dependent on the driving force used! The greater the distance between the drive and guide bearings, the higher the degree of wear and required drive force.
There may be other factors that add to the braking effect, but the coefficient of friction is the main cause.
NOTE: The Rule(2:1) is based on the static friction value of 0.25 theoretically, However, Additional lubrication can help to drop friction and extend the 2:1 ratio.
If you have any questions on design and/or assembly, please contact our application engineers.


Precision shafts
Precision shafts

AS: Hard anodized aluminum shaft, the best shaft for LIN linear bearings; CS: Hard-chromed steel shaft, the effective-cost shaft; ES: 304 Stainless steel shaft, the best for chemical liquid; Shaft end processing service...

more

CSB-LIN® Plastic Linear Bearings Finder[V2.0] including LIN plastic linear bearings and LINP precision linear bearings. The system is based on the analysis and calculation of a large number of test data in CSB® laboratory. You can calculations bearing data by entering parameters such as bearing load, speed, temperature and position information, The system will output bearing adaptation data and min. driving force.
Because the system calculate and analyze based on lab data, it can't exactly meet the ractual use requirements absolutly. The system data verification has certain limitations; CSB® recommends that the bearing must be tested again to verify whether it meets the actual use requirements.
CSB-LIN® Plastic Linear Bearings Finder output data information is only for design reference, and can not be used as the final standard for determining the bearing material conformity, If you have any questions, please contact CSB® sales engineers.

CSB®LIN-11RS Plastic linear bearings, Closed and self-aligning design

Type PDF
Size 121KB
Time 03-2020
No. CSB/CAT.052
download

1847
