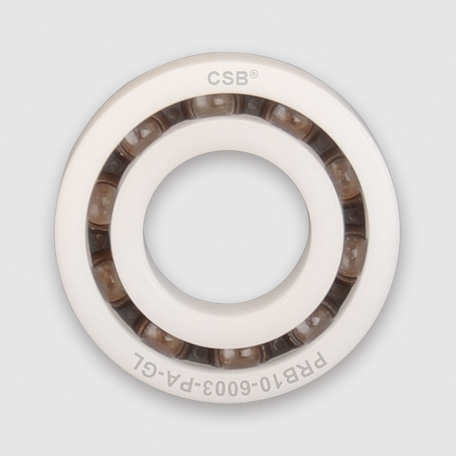

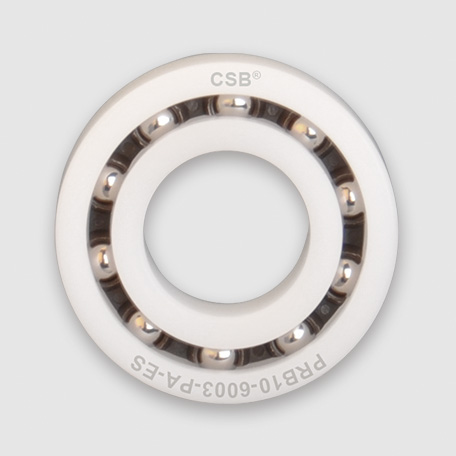

PRB10 Plastic ball bearings

Product properties

PRB10 has good strength and wear resistance as a generic plastic rolling bearings, the operation noise very low because the self-lubrication of the material;

These bearings perform well in an alkaline environment but not for long-term operation in an acidic environment.

The standard material of inner and outer ring: POM, cage material: PA, ball material: glass or stainless steel;

The long-term operation temperature: -40~+80℃.

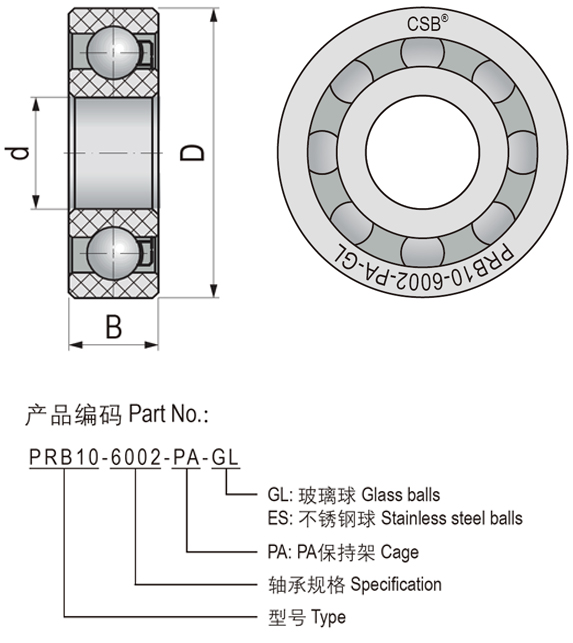

PRB10 Plastic ball bearings, Metric
Dimensions
CSB-EPB® Plastic plain bearings
CSB-EPB® Plastic plain bearings

CSB-EPB® Plastic plain bearings use high-performance plastics as the raw material, and filled high-strength fibers and special solid lubricants by the polymer compound technology to improve the anti-wear resistance...

more
CSB-SFP® Semi-finished products
CSB-SFP® Semi-finished products

CSB-SFP® self-lubricated plastic semi-finished products available service for the customer special requirement of uncommon bearings. It is possible for the mold cost saving and improves the delivery time...

more

CSB-PRB® Plastic Ball Bearings Finder[V2.0] is based on the analysis and calculation of a large number of test data in CSB laboratory. You can calculations material data by entering parameters such as bearing load, speed, and temperature, and finally output material adaptation data.
Because the system calculate and analyze based on lab data, it can't exactly meet the ractual use requirements absolutly. The system data verification has certain limitations; CSB recommends that the bearing must be tested again to verify whether it meets the actual use requirements.
CSB-PRB® Plastic Ball Bearings Finder output data information is only for design reference, and can not be used as the final standard for determining the bearing material conformity, If you have any questions, please contact CSB sales engineers.

CSB-PRB® Plastic Ball Bearings

Type PDF
Size 226KB
Time 03-2020
No. CSB/CAT.052
download
