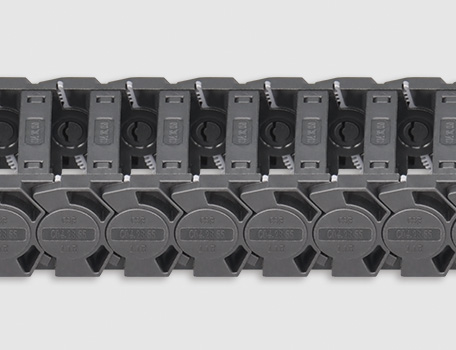

C04.28 Quiet cable carriers

Product properties

C04.28 quiet cable carriers are very light and cleanroom suitable,  the special elastic structure design for rotation connection dliminates the impact noise in the movement, making them ideal for highly dynamic and cleanroom applications.

● Long-term application temperature:-40/+120℃

● Inner height:28 mm
● Inner width:30-60 mm
● Bend radius:55-150 mm
● Link pitch:22 mm


C04.28 Quiet cable carriers
Dimensions

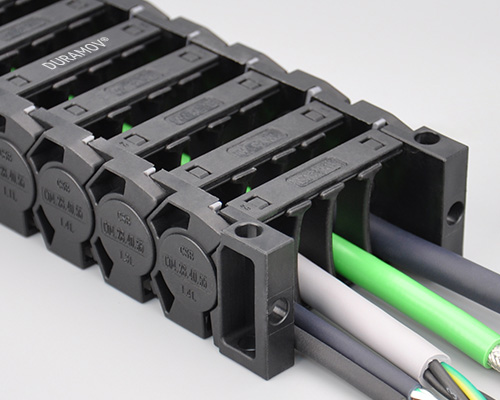

C04.28 quiet cable carriers, light and cleanroom suitable

C04.28 quiet cable chains, light and cleanroom suitable

Product features

C04.28 quiet cable carriers are very light and cleanroom suitable,  the special elastic structure design for rotation connection dliminates the impact noise in the movement, making them ideal for highly dynamic and cleanroom applications.

● Inner height 28mm, Inner width from 30mm to 60mm

● Elastic connection and small pitch for low-noise, smooth running

● Crossbars removable along the inner and outer radius

● Dynamic and quiet suitable for cleanroom applications

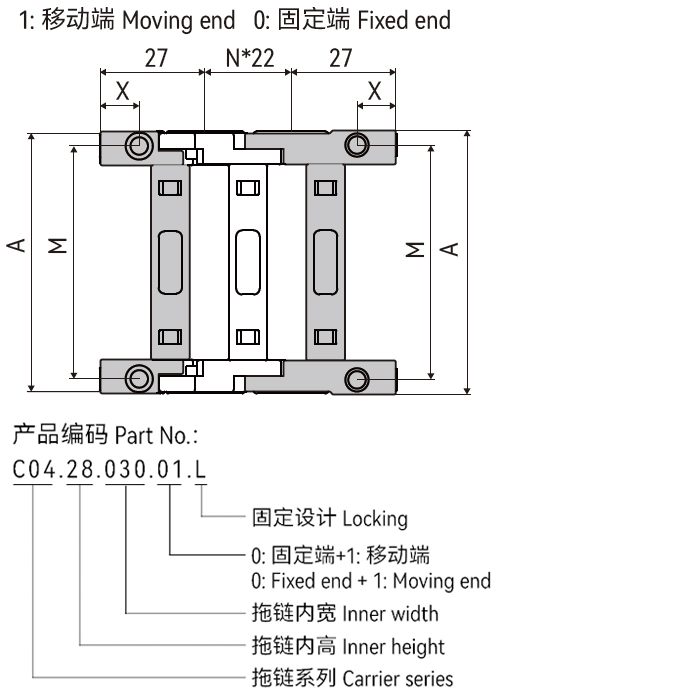

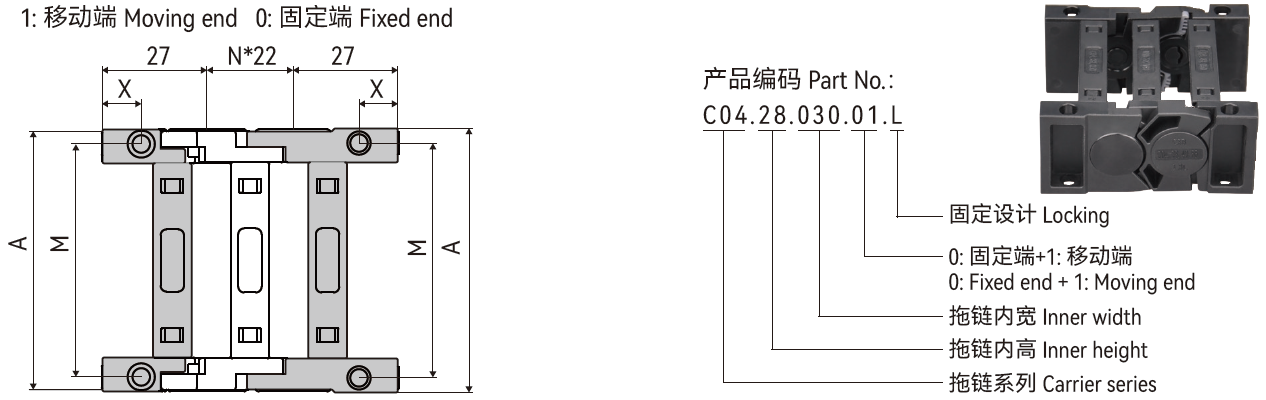

Mounting bracket dimensions

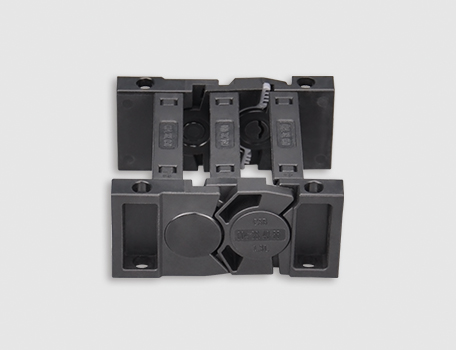

Quiet cable chains mounting bracket dimensions

Part No.

Inner width Bi
[mm]

A
[mm]

X
[mm]

M
[mm]

C04.28.30.0/13057.510
40
C04.28.40.0/14067.51050
C04.28.50.0/15077.51060
C04.28.60.0/16087.51070

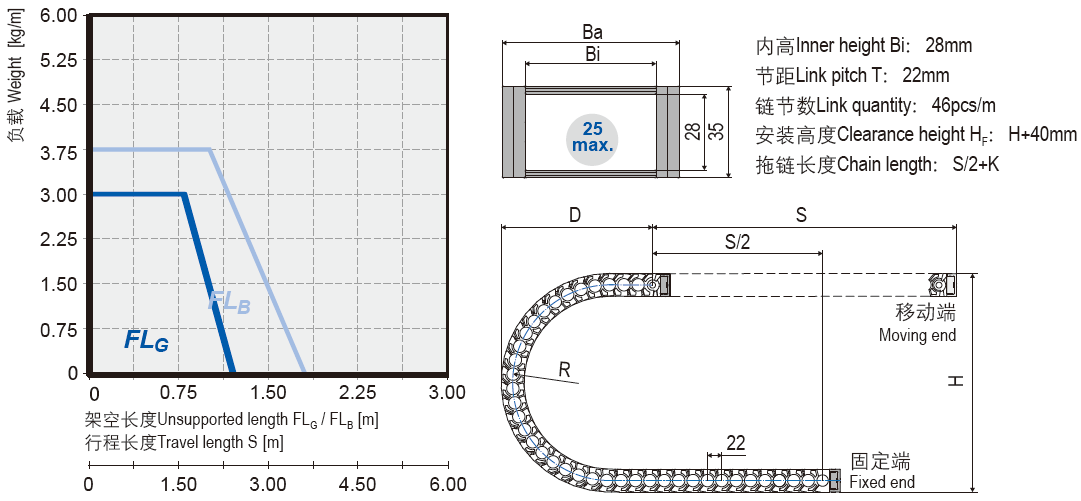

Installation dimensions

Installation dimensions

Unsupported length

≤ 1.0m


Speed / acceleration FLG

≤ 3 [m/s] / 8 [m/s² ]

Sliding length

Inapplicable

Speed / acceleration FLB

≤ 2 [m/s] / 4 [m/s² ]

Vertical hanging

≤ 5m

Sliding speed / acceleration

Inapplicable

Vertical standing

≤ 0.5m

Permitted temperature

-40℃ ~120℃

Side-unsupported length

≤ 0.5m

Flammability Class

UL94 HB

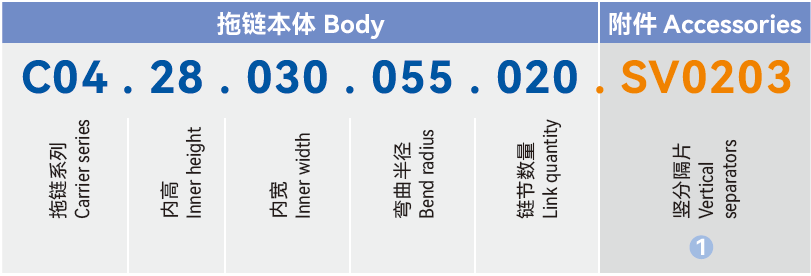

Order code for pre-assembled cable carriers

Order code for pre-assembled cable chains

① SV0203: Install 3pcs vertical separators every other 2pcs blank links

▊ Installation

CSB Quiet cable chains installation

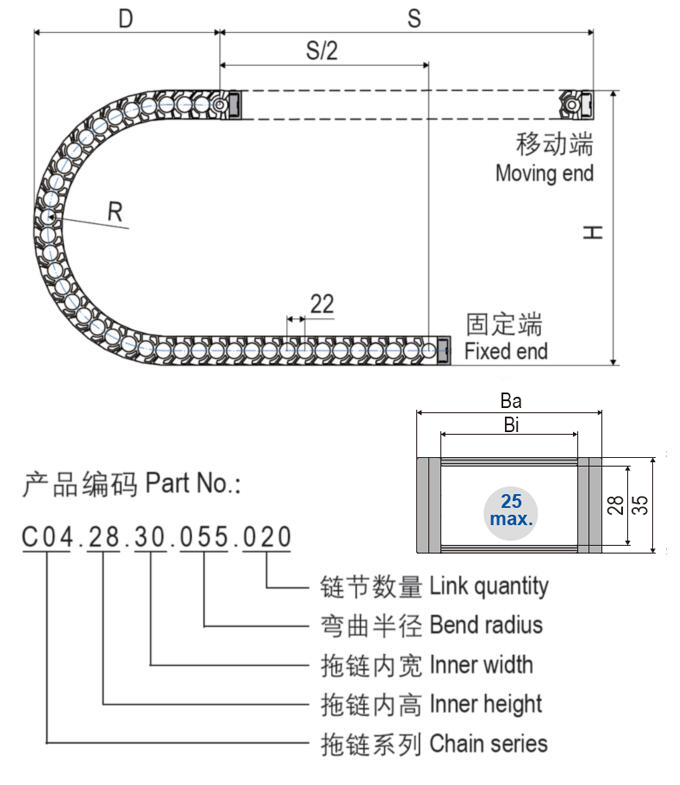

Installation dimensions

Quiet cable chains installation dimensions

*Please consult CSB® if space is particularly restricted.

R055075100150
H180220270370
D108128153203
K220280360520

*The required clearance height:HF=H+15mm(Fill weight 0.3kg/m)

C04 Quiet cable chains

Type PDF
Size 504MB
Time 10-2023
No. CSB/CAT.064
download

258

CSB-PCC® Plastic Cable Chains Finder[V1.0] is based on the analysis and calculation of a large number of test data in CSB® laboratory. You can calculations filler and installation data by entering parameters such as cables, gas tubes, oil tubes and installation data, The system will analyze your design data and finally output the adaptation cable chains.
Because the system calculate and analyze based on lab data, it can't exactly meet the ractual use requirements absolutly. The system data verification has certain limitations; CSB® recommends that the cable chains must be tested again to verify whether it meets the actual use requirements.
CSB-PCC® Plastic Cable Chains Finder output data information is only for design reference, and can not be used as the final standard for determining the cable chains conformity, If you have any questions, please contact CSB® sales engineers.
