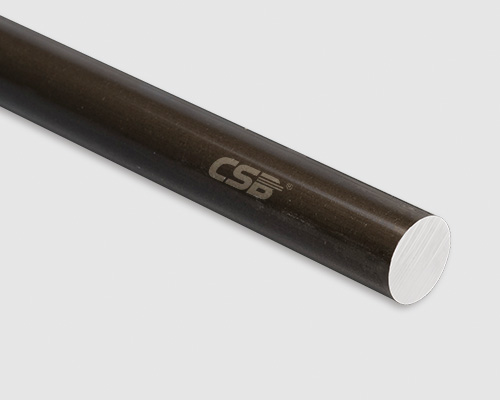

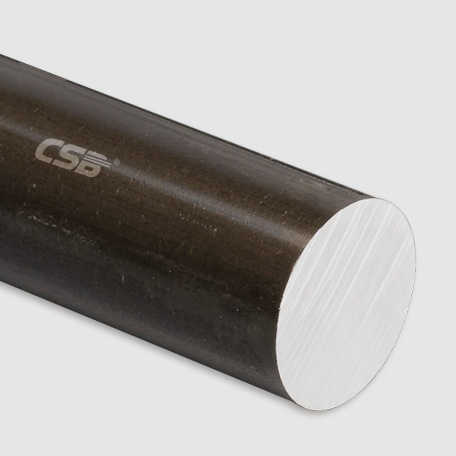

Precision aluminum shafts

Product properties

● The recommended shaft material for all linear plain bearings made of EPB13

● Material: EN AW 6061/6060

● Straightness: EN 754-3

● Hardness: 75 HB

● Surface: hard anodized

● Surface hardness: 450-550 HV


Precision aluminum shafts, Metric
Dimensions
Shaft end blocks
Shaft end blocks

● Aluminum material and low weight
● Anodized surface
● With locking screw, easy to install

more

CSB-LMS® Precision shafts

Type PDF
Size 119KB
Time 03-2020
No. CSB/CAT.052
download
