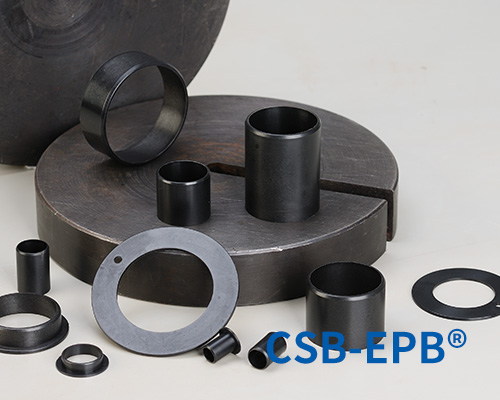

EPB12 Plastic plain bearings

Product properties

● Good wear resistance material suitable for high load and oscilation motions. It is an economic solution for high load applications

● Continuous working temperature: -40℃/+135℃

● Suitable for high load operation

● Good for oscillating operation

● Good impact resistance

● Comtainment prevention ability


Material properties

Standard

Unit

CSB-EPB12

General properties

Color

-

-

Black

Density

ISO1183

g/cm3

1.32

Max. moisture absorption, 50%RH

ISO62

%

0.9

Max. water absorption

ISO62

%

4.9

Coefficient of sliding friction(steel)

ITS025

µ

0.05-0.20

Max. PV value

ITS026

N/mm2×m/s

0.55

Mechanical properties

Flexural modulus

ISO178

MPa

2200

Flexural strength

ISO178

MPa

100

Max. static load

ITS027

MPa

75

Max. dynamic load

ITS028

MPa

43

Shore hardness

ISO868

D

83

Physical and thermal properties

Long-term application temperature

ITS029

+135

Short-term application temperature

ITS029

+155

Lowest application temperature

ITS029

-40

Thermal conductivity

ISO22007

W/m/K

0.24

Coefficient of thermal expansion

ISO11359

K-1×10-5

5

Flammability

UL94

Class

HB

Electrical properties

Volume resistance

IEC60093

Ω·cm

>1011

Surface resistance

IEC60093

Ω

>1011

*ITS: CSB company's internal test standards.   **Test temperatures are 23℃ unless otherwise stated.

EPB12 Plastic plain bearings
Dimensions

 PV value

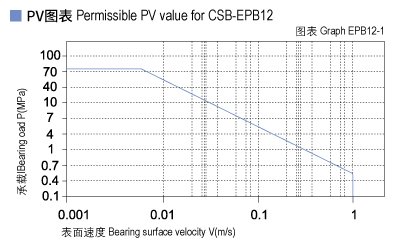

The max PV value of the CSB-EPB12 plastic bearings is 0.55N/mm2×m/s which determines the load capacity of bearing is inversely proportional to the speed. Please refer to the chart for more detailed information (Graph EPB12-1).

EPB12_01-Plastic plain bearings PV value.jpg

▊ Load, speed and temperature

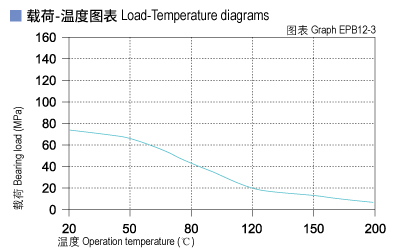

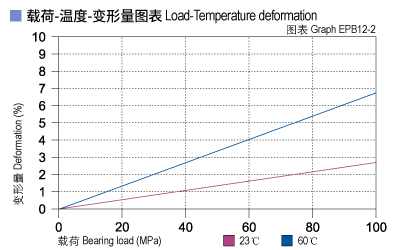

CSB-EPB12 allows the Max static load of 75Mpa, The max compressive deformation rate under the max load is listed in Graph EPB12-2, The actual load capacity of bearing is slightly less than 75Mpa, The bearing load is variable against the speed and temperature, Fast speed (Vmax: 1.0m/s) results into higher temperature (Tmax: 135℃) which decreases the load capacity of the bearing. Please refer to the Graph EPB12-3 for such variation.

EPB12_02-Plastic plain bearings load.jpgEPB12_03-Plastic plain bearings load and tepmerature.jpg

▊ Friction factor, wear and shaft material

 Friction factor

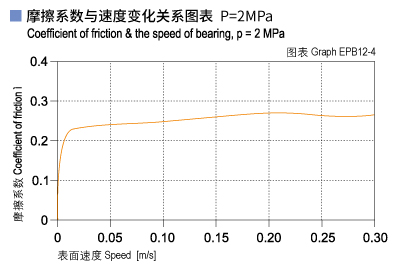

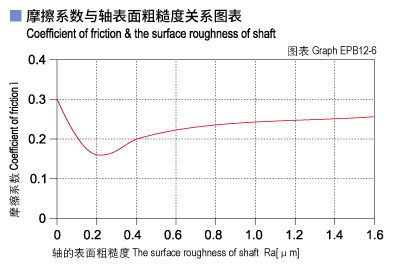

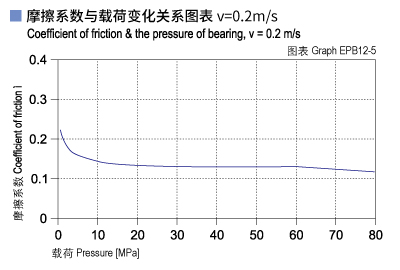

Graph EPB12-4 shows that the friction factor of CSB-EPB12 is not considerably affected by the operation speed when the loading is stable. At the meantime, Graph EPB12-5 shows that the friction factor of CSB-EPB12 is not considerably affected by the loading when the operation speed is stable. This bearing is the only typical material whose friction factor is not sensitive to the operation speed and loading. Graph EPB12-6 tells that the fiction factor of CSB-EPB12 will not be affected by the shaft roughness when the shaft roughness is better than Ra0.4. The recommended Shaft roughness is Ra0.1~0.4.

CSB-EPB12
Dry
Grease
Oil
Water
Friction coef. μ
0.05~0.20
0.09
0.04
0.04



EPB12_04-Plastic plain bearings friction and speed.jpgEPB12_05-Plastic plain bearings friction and load.jpgEPB12_06-Plastic plain bearings friction and surface roughness of shaft.jpg

 Wearing and shaft material

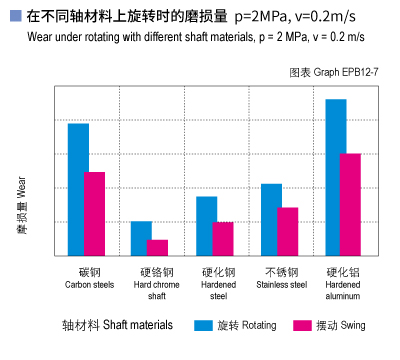

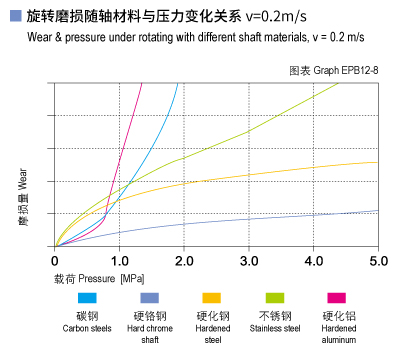

Graph EPB12-7 and Graph EPB12-8 tells that CSB-EPB12 is suitable for both hard chrome steel shaft and hardened steel shaft. Graph EPB12-8 shows that the wearing feature of CSB-EPB12 is better in oscillation operation than in rotation operation. Hardened chrome steel shaft and hardened steel shaft is the better choice under oscillation operation and hardened steel shaft and hardened chrome steel shaft is the better choice under rotation operation.

EPB12_07-Plastic plain bearings wear and shaft materials.jpgEPB12_08-Plastic plain bearings wear and load.jpg

 Chemical resistance

CSB-EPB12 is good at chemical resistance against weak acidic medium and various kinds of lubricants.

 Water absorption

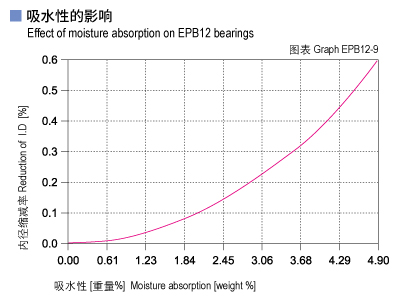

The moisture absorption of CSB-EPB12 plastic plain bearings is 0.9% in standard atmosphere. The max. water absorption is 4.9% in water. The application environment has to be considered due to the high water absorbtion properties.

EPB12_09-Plastic plain bearings moisture absorption.jpg

 UV resistance

CSB-EPB12 can become brittle and lost its impact resistance when it is exposed into UV ray for a certain period of time.

▊ Installation tolerances

CSB-EPB12 Tolerances after pressfit

Diameter [mm]
CSB-EPB12 E10 [mm]
Housing H7 [mm]
Shaft h9 [mm]
>0~3
+0.014~+0.054
0~+0.010
0~-0.025
>3~6
+0.020~+0.068
0~+0.012
0~-0.030
>6~10
+0.025~+0.083
0~+0.015
0~-0.036
>10~18
+0.032~+0.102
0~+0.018
0~-0.043
>18~30
+0.040~+0.124
0~+0.021
0~-0.052
>30~50
+0.050~+0.150
0~+0.025
0~-0.062
>50~80
+0.060~+0.180
0~+0.030
0~-0.074
>80~120
+0.072~+0.212
0~+0.035
0~-0.087
>120~180
+0.085~+0.245
0~+0.040
0~-0.100


CSB-EPB® Plastic Bearings Finder[V2.0] is based on the analysis and calculation of a large number of test data in CSB® laboratory. You can calculations material data by entering parameters such as bearing load, speed, and temperature, and finally output material adaptation data.
Because the system calculate and analyze based on lab data, it can't exactly meet the ractual use requirements absolutly. The system data verification has certain limitations; CSB® recommends that the bearing must be tested again to verify whether it meets the actual use requirements.
CSB-EPB® Plastic Bearings Finder output data information is only for design reference, and can not be used as the final standard for determining the bearing material conformity, If you have any questions, please contact CSB® sales engineers.

CSB-SFP® Semi-finished Products Finder[V2.0] is based on the analysis and calculation of a large number of test data in CSB® laboratory. You can calculations material data by entering parameters such as bearing load, speed, and temperature, and finally output material adaptation data.
Because the system calculate and analyze based on lab data, it can't exactly meet the ractual use requirements absolutly. The system data verification has certain limitations; CSB® recommends that the products must be tested again to verify whether it meets the actual use requirements.
CSB-SFP® Semi-finished Products Finder output data information is only for design reference, and can not be used as the final standard for determining the bearing material conformity, If you have any questions, please contact CSB® sales engineers.

CSB-EPB12 Plastic Plain Bearings

Type PDF
Size 586KB
Time 09-2021
No. CSB/CAT.062E
download

943

MediumEPB12 bearings resistance
AlcoholResistant
HydrocarbonsResistant
Greases. oilsResistant
FuelsResistant
Diluted acidsConditionally resistant
Strong acidsNot resistant
Diluted alkalisResistant
Strong alkalisConditionally resistant
CSB® Bearing Material Chemical Resistance

Please select bearing material and medium...

CSB® bearing material chemical resistance data is a comparison test result of the CSB chemistry laboratory using laboratory specimens or similar chemicals at room temperature 23 ℃, without considering the impact of other temperatures and chemical medium mixtures on the chemical resistance of CSB® bearing materials ; Therefore, this data can only act as a reference. CSB® recommends that the chemical resistance of actual parts should be tested under application conditions and verify the suitability of the bearings.
