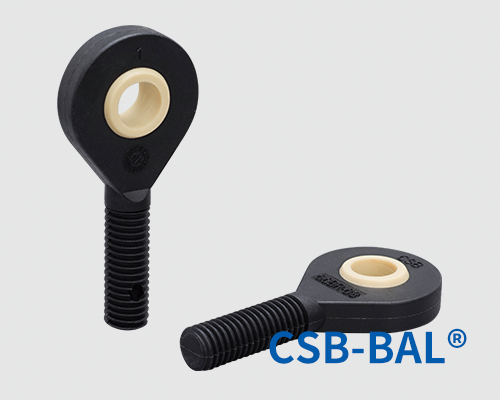

GOB Rod end bearings - CSB® Plastic Bearing Technology

Product properties

● Spherical ball made of highly wear-resistant EPB15
● Connection rod made of high strength and shape-stable M163
● External thread design
● Maintenance-free and dry operation
● Smooth design has no dirt traps
● Absolute corrosion resistance
● Compensation of misalignment errors
● No noise and light weight

Standard products

GOB Rod end bearings

Part no.:

d1 [mm]：

d1-max. [mm]：

d1-min. [mm]：

d2 [mm]：

d3 [mm]：

B [mm]：

l1 [mm]：

l2 [mm]：

h1 [mm]：

C1 [mm]：

Min. screw depth [mm]：

Max. adjustable angle [°]：

Max. shaft [mm]：

Min. shaft [mm]：

*Lead time [wks]：

Shop now

Dimensions

▊GOB Rod end bearings load capacity

Part No.	Max. static tensile strength		Max. radial static load		Max. tightening torque through ball	Weight
Part No.	Short-term [N]	Long-term [N]	Short-term [N]	Long-term [N]	[Nm]	[g]
GOBR-06	850	425	80	40	0.5	2.7
GOBR-08	1600	800	160	80	2	5.1
GOBR-10	2600	1300	250	125	5	8.4
GOBL-06	850	425	80	40	0.5	2.7
GOBL-08	1600	800	160	80	2	5.1
GOBL-10	2600	1300	250	125	5	8.4

BAL Plastic spherical balls

● Self lubricated and maintenance free
● Corrosion resistance
● Impact resistance, low noise
● Light weight

CSB®GOB Rod end bearings, External thread design

Type PDF

Size 464KB

Time 09-2021

No. CSB/CAT.062E

download
