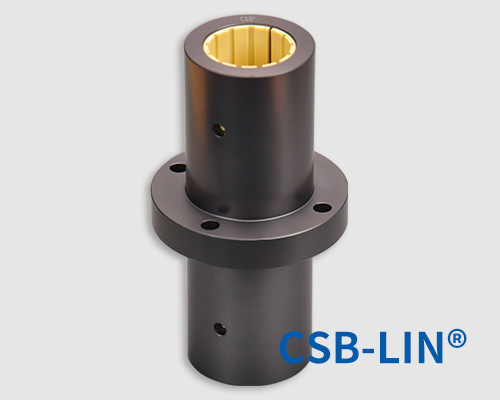

LIN-12RFM Plastic linear bearings

Product properties

● Long design with round flange
● Assembled 2pcs liners LIN-12
● Anodized aluminum adapter
● Axial secured by bolts
● Maintenance-free and low noise
● Resistant to dirt and dust
● Operation temperature -50℃/+90℃


LIN-12RFM Plastic linear bearings

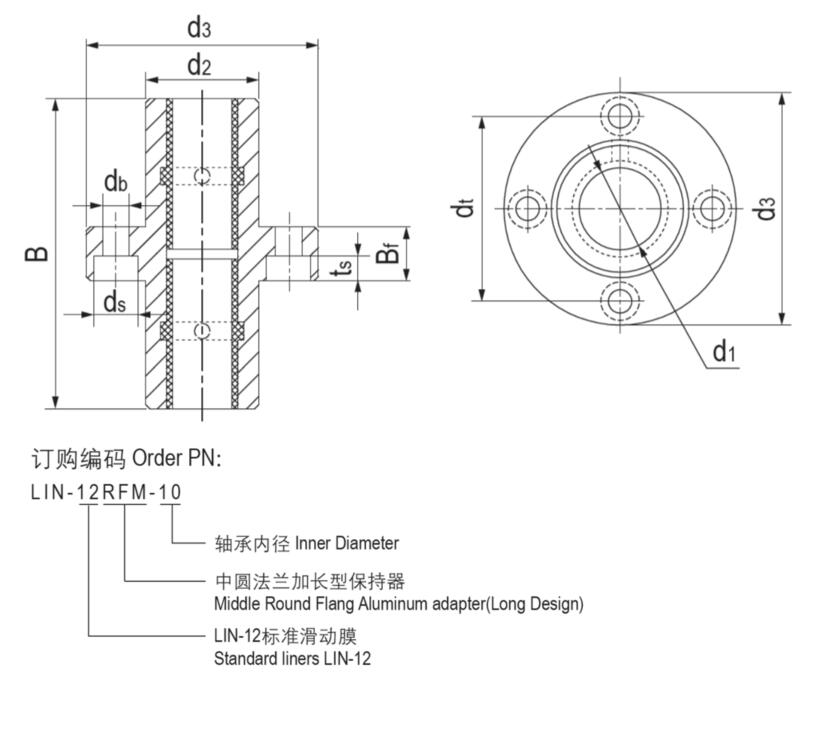

Dimensions

LIN-12RFM Plastic linear bearings load capacity

Part No.

Dynamic Load P=5MPa
Static Load P=35MPa
Weight
F max. [N]
F max. [N]
[g]
LIN-12RFM-10
1300910044
LIN-12RFM-12
16801176057
LIN-12RFM-16
24001680079
LIN-12RFM-20
300021000126
LIN-12RFM-25
500035000249
LIN-12RFM-30
750052500388
LIN-12RFM-401200084000835
LIN-12RFM-50175001225001352

CSB-LIN® Linear bearing eccentric forces

●Maximum 2:1 ratio
●1x =bearing separation on same shaft
●2x =distance from shaft to load or force

CSB-LIN® Precision linear bearings

 ●CAUTION: uneven motion or even system blockage will occur if the 2:1 ratio is exceeded !
This principle is NOT load dependent! It is NOT due to edge loading. It is also NOT dependent on the driving force used! The greater the distance between the drive and guide bearings, the higher the degree of wear and required drive force.
There may be other factors that add to the braking effect, but the coefficient of friction is the main cause.
NOTE: The Rule(2:1) is based on the static friction value of 0.25 theoretically, However, Additional lubrication can help to drop friction and extend the 2:1 ratio.
If you have any questions on design and/or assembly, please contact our application engineers.
