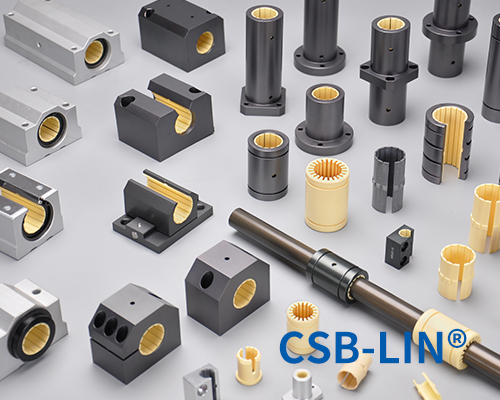

 Plastic linear bearings, flange

Product properties

Maintanence free plastic linear bearings. Low noise operation is suitable for continous application under the extremely dusty environment. It is washable by the clean detergent of the food machine. There is no critical requirement about the shaft hardness or the mounting holes of the housing.
● Maintenance-free, dry operation, low noise
● Suitable for long-time running in dusty environments
● Corrosion resistance; Cleaning with disinfectant lotion
● Straight grooves design removed the dust from the friction surface


LIN-11RF Plastic linear bearings
LIN-11RF Plastic linear bearings

● Closed design with round flange
● Assembled LIN-11 liners
● Axial secured by bolts
● Maintenance-free and low noise

more
LIN-11RT Plastic linear bearings
LIN-11RT Plastic linear bearings

● Closed design with square flange
● Assembled LIN-11 liners
● Axial secured by bolts
● Maintenance-free and low noise

more
LIN-12RFL Plastic linear bearings
LIN-12RFL Plastic linear bearings

● Long design with round flange
● Assembled 2pcs liners LIN-12
● Axial secured by bolts
● Maintenance-free and low noise

more
LIN-12RTL Plastic linear bearings
LIN-12RTL Plastic linear bearings

● Long design with square flange
● Assembled 2pcs liners LIN-12
● Axial secured by bolts
● Maintenance-free and low noise

more
LIN-12RFM Plastic linear bearings
LIN-12RFM Plastic linear bearings

● Long design with round flange
● Assembled 2pcs liners LIN-12
● Axial secured by bolts
● Maintenance-free and low noise

more
LIN-12RTM Plastic linear bearings
LIN-12RTM Plastic linear bearings

● Long design with square flange
● Assembled 2pcs liners LIN-12
● Axial secured by bolts
● Maintenance-free and low noise

more

CSB-LIN® Eccentric forces

●Maximum 2:1 ratio
●1x =bearing separation on same shaft
●2x =distance from shaft to load or force

CSB-LIN® Precision linear bearings

 ●CAUTION: uneven motion or even system blockage will occur if the 2:1 ratio is exceeded !
This principle is NOT load dependent! It is NOT due to edge loading. It is also NOT dependent on the driving force used! The greater the distance between the drive and guide bearings, the higher the degree of wear and required drive force.
There may be other factors that add to the braking effect, but the coefficient of friction is the main cause.
NOTE: The Rule(2:1) is based on the static friction value of 0.25 theoretically, However, Additional lubrication can help to drop friction and extend the 2:1 ratio.
If you have any questions on design and/or assembly, please contact our application engineers.


Precision shafts
Precision shafts

AS: Hard anodized aluminum shaft, the best shaft for LIN linear bearings; CS: Hard-chromed steel shaft, the effective-cost shaft; ES: 304 Stainless steel shaft, the best for chemical liquid; Shaft end processing service...

more
Supported shafts
Supported shafts

Compact and low high design support;

Standard design support;

3 materials shaft: Hard anodized aluminum shaft, Hardchromed steel shaft, 304 Stainless steel shaft;

more

CSB-LIN® Plastic Linear Bearings Finder[V2.0] including LIN plastic linear bearings and LINP precision linear bearings. The system is based on the analysis and calculation of a large number of test data in CSB® laboratory. You can calculations bearing data by entering parameters such as bearing load, speed, temperature and position information, The system will output bearing adaptation data and min. driving force.
Because the system calculate and analyze based on lab data, it can't exactly meet the ractual use requirements absolutly. The system data verification has certain limitations; CSB® recommends that the bearing must be tested again to verify whether it meets the actual use requirements.
CSB-LIN® Plastic Linear Bearings Finder output data information is only for design reference, and can not be used as the final standard for determining the bearing material conformity, If you have any questions, please contact CSB® sales engineers.

CSB®LIN-12RTM Plastic linear bearings, Long design with square flange

Type PDF
Size 131KB
Time 03-2020
No. CSB/CAT.052
download

1842

CSB®LIN-12RTL Plastic linear bearings, Long design with square flange

Type PDF
Size 130KB
Time 03-2020
No. CSB/CAT.052
download

1856

CSB®LIN-12RFM Plastic linear bearings, Long design with round flange

Type PDF
Size 136KB
Time 03-2020
No. CSB/CAT.052
download

1835

CSB®LIN-12RFL Plastic linear bearings, Long design with round flange

Type PDF
Size 134KB
Time 03-2020
No. CSB/CAT.052
download

1838

CSB®LIN-11RT Plastic linear bearings, Closed design with square flange

Type PDF
Size 127KB
Time 03-2020
No. CSB/CAT.052
download

1828

CSB®LIN-11RF Plastic linear bearings, Closed design with round flange

Type PDF
Size 137KB
Time 03-2020
No. CSB/CAT.052
download

1835
