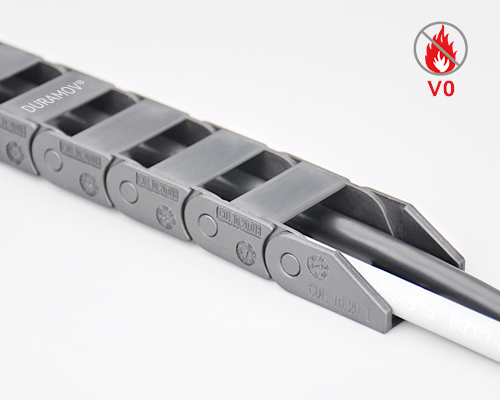

Product Features

C01FR flame-retardant cable chain are very small, one piece chains with low weight, making them ideal for highly dynamic applications. C01FR flame-retardant cable carriers are optimal for the smallest installation spaces, and are available in many versions.
● Flammability Class UL94 V0
● Small pitch for low-noise, smooth running
● One-piece design, non-openable
● Very lightweight, low price smallest inner heights and bend radius

Electrically conductive ESD/ATEX version C01E upon request

C01FR.07 Flame-retardant cable chain

● Inner height：7 mm
● Inner width：7-30 mm
● Bend radius：15-48 mm
● Link pitch：16.7 mm

Details

C01FR.10 Flame-retardant cable chain

● Inner height ：10 mm
● Inner width：10-30 mm
● Bend radius：18-38 mm
● Link pitch：20 mm

Details

C01FR.12 Flame-retardant cable chain

● Inner height：12 mm

● Inner width：10-12 mm
● Bend radius：18-38 mm
● Link pitch：20 mm

Details

C01FR.15 Flame-retardant cable chain

● Inner height：15 mm

● Inner width：16-50 mm
● Bend radius：25-48 mm
● Link pitch：20 mm

Details

▊ Product introduction

C01FR flame-retardant cable chain are very small, one piece chains C01 Micro cable chains

with low weight, making them ideal for highly dynamic applications.

C01FR flame-retardant cable cable carriers are optimal for the

smallest installation spaces, and are available in many

versions.

Micro cable chains One-piece design，non-openable One-piece design，non-openable

Micro cable chains flammability Class Flammability Class UL94 V0

Micro cable chains CE certification CE certification

Micro cable chains RoHS certification RoHS certification

Micro cable chains low-noise Low-noise

Electrically conductive ESD/ATEX version C01E upon request

▊ Standard dimensions

Flame-retardant cable carriers	Part No.	Inner width Bi [mm]	Outer width Ba [mm]	Inner height Hi [mm]	Outer height Ha [mm]	Bend radius R [mm]	Unsupported length [m]
	C01FR.07	7-30	12-35	7	10	15-48	≤0.5
	C01FR.10	10-30	14-34	10	12	18-38	≤0.5
	C01FR.12	10-12	14-16	12	14	18-38	≤0.75
	C01FR.15	16-50	24.2-58.2	15	19.3	25-48	≤1.0

No videos

▊ Installation

Twist and click Twist and divide

▊ Distribution rules | Cables and hoses

In order to ensure that the chain is functioning properly and to avoid damage to the cables or hoses, the following principles must be observed when laying cables or hoses:

	▊ This minimum clearance would be 10% for electrical round cables, 20% for hydraulic hoses.
	▊ In order to reduce the possible friction, avoid pipes with different skin materials such as cables or hoses.（eg: cable and hydraulic hoses）
	▊ In applications where multiple cables and hoses are used, in order to avoid mutual friction between them, it is preferable to place them in a suitable separate space and separate them from each other with a spacer. If there are no conditions to achieve, make sure there is enough space between them to avoid mutual friction (H<D).
	▊ The cables or hoses are laid in a symmetrical manner according to their diameter and weight. The largest and heaviest cables are placed on the outside of the section and the small and light cables are placed on the inside.

▊ Typical Applicable Industries and Applications

● Vehicle construction

● Automatic doors

● Measuring machines

● Electric equipment

● Pick & place robots

● Medical industries

● Printer and plotter

● Semi-conductor machines
