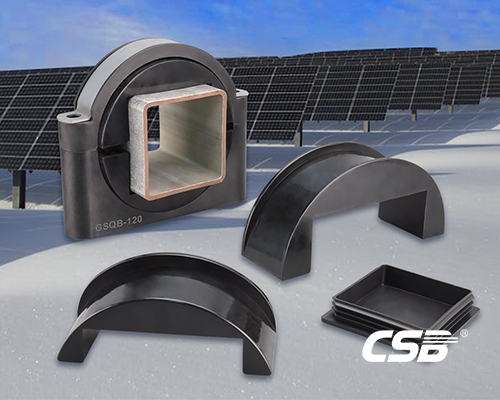

CSB® Solar tracking bracket bearings

Product properties

●Photovoltaic tracking stent plastic bearing
●Light heat tracking stent plastic bearing
●UV resistance
●High and low temperature,Damp-heat aging
●Low friction, wear resistance
●Self lubricating, maintenance-free
●High strength, easy installation


 QBF1 PV Support bracket bearings
QBF1 PV Support bracket bearings

●Single flange design plastic bearings
●UV resistance
●High and low temperature,damp-heat aging
●Low friction, wear resistance

more
 QBF2 PV Support bracket bearings
QBF2 PV Support bracket bearings

●Double flange design plastic bearings
●UV resistance
●High and low temperature,damp-heat aging
●Low friction, wear resistance

more
GSQB PV Support bracket bearings
GSQB PV Support bracket bearings

●Integrated design plastic spherical bearings
●UV resistance
●High and low temperature,damp-heat aging
●Suitable for flat or slope brackets

more
Heliostat support bracket bearings
Heliostat support bracket bearings

●Suitable for the shaft of heliostat and push rod installation
●Max. dynamic load 140MPa
●Self-lubricating,maintenance-free
●Low friction, wear resistance

more
Concentrator support bracket bearings
Concentrator support bracket bearings

●Made of long fiber and high-strength resin
●Max. dynamic load 140MPa
●Self-lubricating,maintenance-free
●Low friction, wear resistance

more
PV Support bracket plugs
PV Support bracket plugs

●Plastic end caps with pre-load tip design
●UV resistance
●High and low temperature,damp-heat aging
●High strength, easy installation

more

Benefits in Application

 The specific low wear, low friction behavior of MN527 facilitates smooth function of the bearing and does not need frequent greasing or maintenance that is required with metal bearings. MN527 also offers better tolerances than metal bearings,which results in better alignment of trackers in the field.

Summary of benefits:

 No greasing or maintenance required

 Better tolerance and better alignment of trackers

 High strength for bearing application

 Low friction and quiet smooth function

Mechanical Features:

 High strength and stiffness

 Low wear and low friction

 Elongation and toughness properties

 Dimensional stability

 Very low moisture absorption

Weather ability property

 Test Method:  ISO 4892-3-2016

 Total exposure45Kw.h

 Exposure time4000h


CSB® Solar tracking bracket bearings

Type PDF
Size 730KB
Time 03-2024
No. CSB/CAT.067E
download
