Product Features

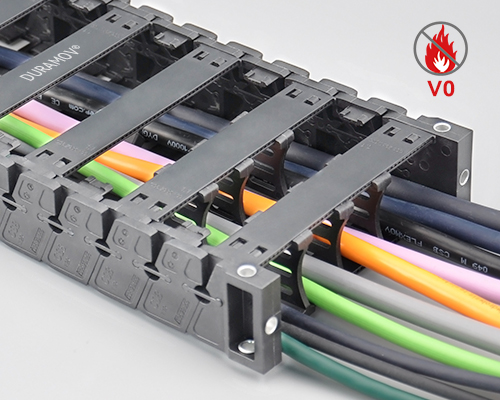

C06FR quiet flame-retardant cable chain with a special structural design and long service life; because the cable carriers with an arc shape design in the outside and the short-pitch chain links are connected with elastic elements, the vibration during the bending to linear motion of the cable carriers is reduced, and it is suitable for low noise, high speed and clean room applications.
● Flammability Class UL94 V0

● Low-noise and smooth running

● Crossbars removable along the inner and outer radius

● Elastic connection and small pitch design

● Suitable for cleanroom and high-speed applications

C06FR.29 Flame-retardant cable chain

● Inner height：29 mm

● Inner width：40-120 mm
● Bend radius：55-150 mm
● Link pitch：22 mm

Details

C06FR.35 Flame-retardant cable chain

● Inner height：35 mm

● Inner width：40-120 mm
● Bend radius：55-150 mm
● Link pitch：25 mm

Details

C06FR.40 Flame-retardant cable chain

● Inner height：40 mm

● Inner width：50-150 mm
● Bend radius：63-200 mm
● Link pitch：27.8 mm

Details

C06FR.52 Flame-retardant cable chain

● Inner height：52 mm

● Inner width：50-150 mm
● Bend radius：75-250 mm
● Link pitch：30 mm

Details

▊ Product introduction

C06FR quiet flame-retardant cable chain with a special

structural design and long service life; because the cable

carriers with an arc shape design in the outside and the

short-pitch chain links are connected with elastic elements,

the vibration during the bending to linear motion of the

cable carriers is reduced, and it is suitable for low noise,

high speed and clean room applications.

Quiet cable chains openable from both sides Openable from both sides

Quiet cable chains CSB lab test 37dB，V=1.8m/s CSB lab test Chain: C06.29.100.055

Quiet cable chains flammability class Flammability Class UL94 V0

Quiet cable chains CE certification CE certification

Quiet cable chains RoHS certification RoHS certification

Quiet cable chains low-noise Low-noise

▊ Standard dimensions

Quiet flame-retardant cable chain, high-speed and cleanroom applications	Part No.	Inner width Bi [mm]	Outer width Ba [mm]	Inner height Hi [mm]	Outer height Ha [mm]	Bend radius R [mm]	Unsupported length [m]
	C06FR.29	40-120	56-136	29	35	55-150	≤1.75
	C06FR.35	40-120	60-140	35	42	55-150	≤1.9
	C06FR.40	50-150	70-170	40	54	63-200	≤2.75
	C06FR.52	50-150	74-174	52	65	75-250	≤3.0

Vertical separators for C06 cable carriers

● The separator separates inside space of the chain to protect cables, oil hoses, gas hoses, etc.

● Separator with high strength, can be ﬁrmly ﬁtted in carriers

Details

No videos

▊ Installation

▊ Distribution rules | Cables and hoses

In order to ensure that the chain is functioning properly and to avoid damage to the cables or hoses, the following principles must be observed when laying cables or hoses:

	▊ This minimum clearance would be 10% for electrical round cables, 20% for hydraulic hoses.
	▊ In order to reduce the possible friction, avoid pipes with different skin materials such as cables or hoses.（eg: cable and hydraulic hoses）
	▊ In applications where multiple cables and hoses are used, in order to avoid mutual friction between them, it is preferable to place them in a suitable separate space and separate them from each other with a spacer. If there are no conditions to achieve, make sure there is enough space between them to avoid mutual friction (H<D).
	▊ The cables or hoses are laid in a symmetrical manner according to their diameter and weight. The largest and heaviest cables are placed on the outside of the section and the small and light cables are placed on the inside.

▊ Typical Applicable Industries and Applications

● Cleanroom

● Printing machines

● Automation

● Measuring machines

● Semi-conductor industries

● Medical industries

● Electronic industries

● General machinery

C06 Quiet cable carriers, high-speed and cleanroom applications 1001

Time 08-2025

Type PDF

No. CSB/CAT.067E

Size 815KB

1001

download
