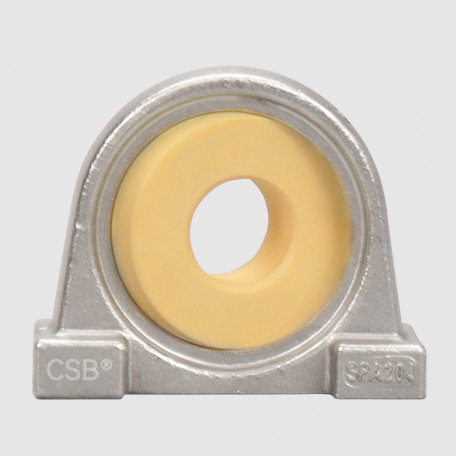

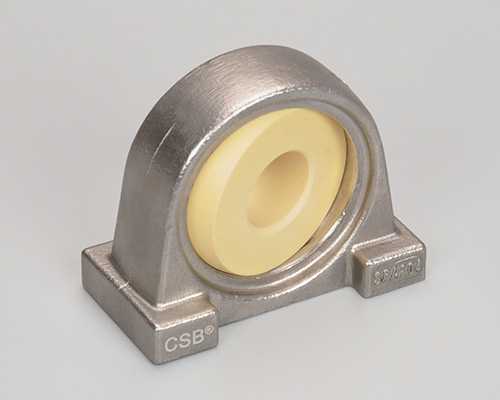

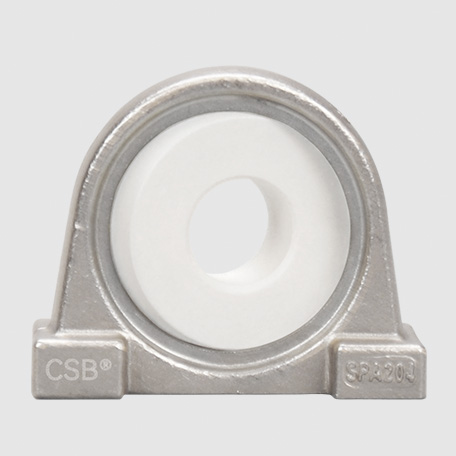

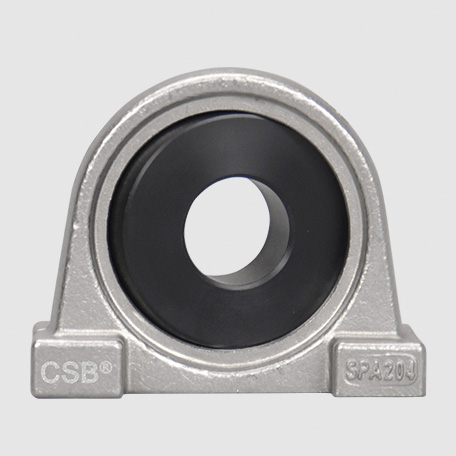

SPA Spherical bearing housings

Product properties

● UC204 up to UC206

● Standard anti-wear composite EPB13 balls, available materials: EPB10 for 250℃ application

● Stainless steel housing with 2 mounting holes

● Maintenance-free dry operation

● High load

● Resistant to dirt

Standard products

Ball material: EPB13

Ball material: EPB10

SPA Spherical bearing housings

Part no.:

d [mm]：

d-max. [mm]：

d-min. [mm]：

B [mm]：

A [mm]：

M [mm]：

H [mm]：

H1 [mm]：

H2 [mm]：

J [mm]：

L [mm]：

Max. pivot angle [°]：

Max. shaft [mm]：

Min. shaft [mm]：

*Lead time [wks]：

Shop now

Dimensions

▊Load capacities of SPA Flange spherical bearings

Part No.	Max. axial static tensile strength	Max. radial static compressive strength	Weight
Part No.	[N]	[N]	[g]
SPA204-20-17-EPB13	7500	11500	134
SPA205-25-17-EPB13	7500	14500	529
SPA206-30-19-EPB13	9500	19500	642
SPA204-20-17-EPB10	17000	26000	133
SPA205-25-17-EPB10	17000	33000	528
SPA206-30-19-EPB10	21000	44000	641

BAL Spherical balls for bearing housings

BAL Spherical balls for bearing housings

● High load spherical ball solutions

● Standard ball material EPB13

● Avaliable 250℃ material EPB10

● Self-lubricated and maintenance free

more

SPA Spherical bearing housings

Type PDF

Size 248KB

Time 02-2021

No. CSB/CAT.061E

download
